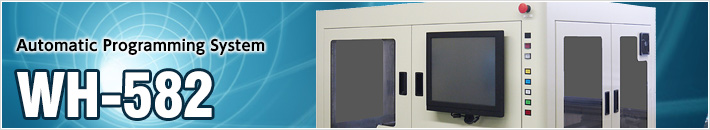

Catalog DownloadWH-582 is the new model of the fully automated programming system equipped with 2 units of manual programmer K5000, up to 16 sockets available for writing.
The auto handler, which has a capacity of double-headed transmission and self correcting by cameras, enables high quality transmission.
WH-382 also targets to the automated handlers equipped with manual programmer Y3000-8.

Watch the WH-582 Video


 Programmer 2 units K5000
Maximum capacity - 16 socket adapters
※For more information about the programmer specification, please refer to the page “Manual Programmer K5000”.
 Target Package Type SOP,TSOP,BGA,QFP,QFN etc.
Target Socket Type Open Top
 Target Tray Type JEDEC
Input x 20, Output x 20, Failure x 1
Device Handling Vacuum Adsorption 2-heads
Automated coordinate correction for socket and device using 2 cameras set in the top and bottom
Pressure  0.5Mpa 60L/min
 Power Supply Three-phase AC200V 50/60Hz
Dimension/Weight  (W)1450x(D)1250x(H)1650mm
※not including projections
 Operating Temperature Range  10~30℃
 Environment  RoHS compliant




Download WH-582 catalog from "WH-582 catalog download"

About programmer K5000, please refer to the page “Manual Programmer K5000”.

“WH-382”, in which 2 units of Y3000-8 installed, is also available in the lineup.

The number of equipped programmer for automated handler may be changed upon your request.

Please refer to the page“Inquiry Form”for inquiries on WH-582 and WH-382.
